Installation Views

How the KI-100SP63 sits in a working bar. The cabinet is 40.7 inches tall, 36 inches wide and 27 inches deep, finished in stainless steel, and needs a dedicated 20-amp 115V circuit, a 3/4 inch water supply and a 1/2 inch drain.

Download the printable spec sheet (PDF)

Planning the space

Kuper is designed to live in the working area rather than a back room, so the ice reaches the glass without a walk. Allow access to the storage compartment at service height, and clearance for airflow and for routine cleaning behind the cabinet.

Kuper KI-100SP63 clear sphere ice machine, front elevation with dimensions

Front elevation—the cabinet with dimensions marked, 40.7 × 36 × 27 inches.

Kuper KI-100SP63 clear sphere ice machine, side view, storage compartment with dimensions

Storage compartment—the temperature-controlled store, capacity 48 spheres.

Kuper KI-100SP63 clear sphere ice machine, isometric view

Service position—the machine in place behind the bar, spheres within reach of the pass.

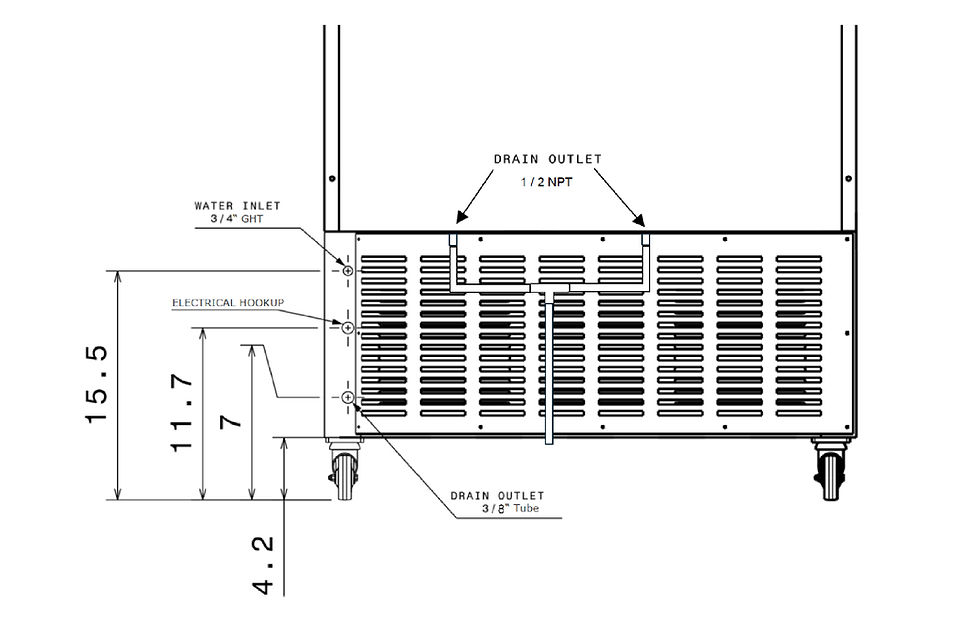

Kuper KI-100SP63 clear sphere ice machine, rear utility connections with dimensions

Connections—3/4 inch water inlet, 1/2 inch drain and the dedicated 115V circuit.
